Export Drawings to SVG









SVG (Scalable Vector Graphics) is a family of specifications of an XML-based file format for describing two-dimensional vector graphics, both static and dynamic (i.e. interactive or animated).



To convert your drawings to SVG, follow the steps,

1. Open a drawing from File->Open or click the Open button on the toolbar.

2. Click the menu item Convert->-->SVG.

3. Specify the paper size, page orientation, color, layout for output, and set PDF document properties if needed.

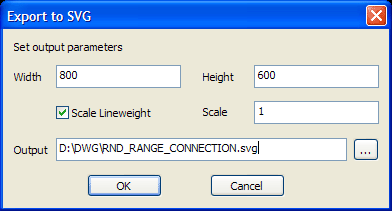

4. Click Export button to confirm and convert your CAD drawing to SVG.
